Tissue-Tek® Accu-Edge® Grossing Tools

Tissue-Tek Accu-Edge Grossing Tools include specially designed Grossing Boards available in two sizes—standard and wells—to accommodate a wide range of tissue types. Bo

Essential tools for complete standardization of the grossing process

Achieve new levels of accuracy and total ease with Tissue-Tek® Accu-Edge® Grossing Tools, specially developed to ensure complete standardization of the grossing process. Consistent and standardized grossing ensures specimens are of exact uniform thickness throughout.

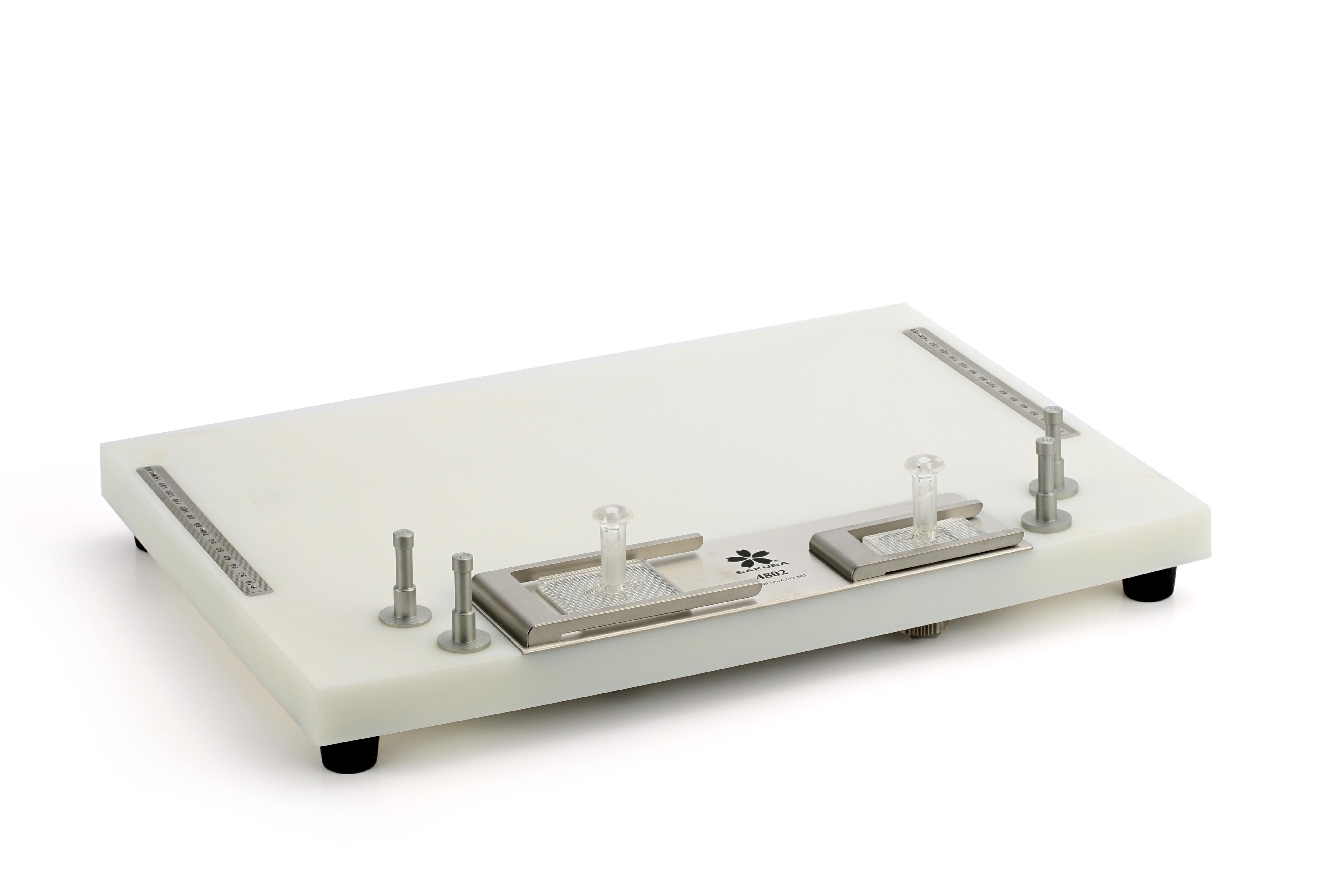

Tissue-Tek Accu-Edge Grossing Tools include specially designed Grossing Boards available in two sizes—standard and wells—to accommodate a wide range of tissue types. Both sizes feature two adjustable wells that ensure grossing to an exact thickness.  The wells can be individually adjusted from 1.5 to 3.0 mm, using the gauges.  Integrated rulers on the standard board enable gross measurement of specimens.

Tissue-Tek® Accu-Edge® Grossing Boards can be used as a stand-alone grossing area or on your current grossing station.

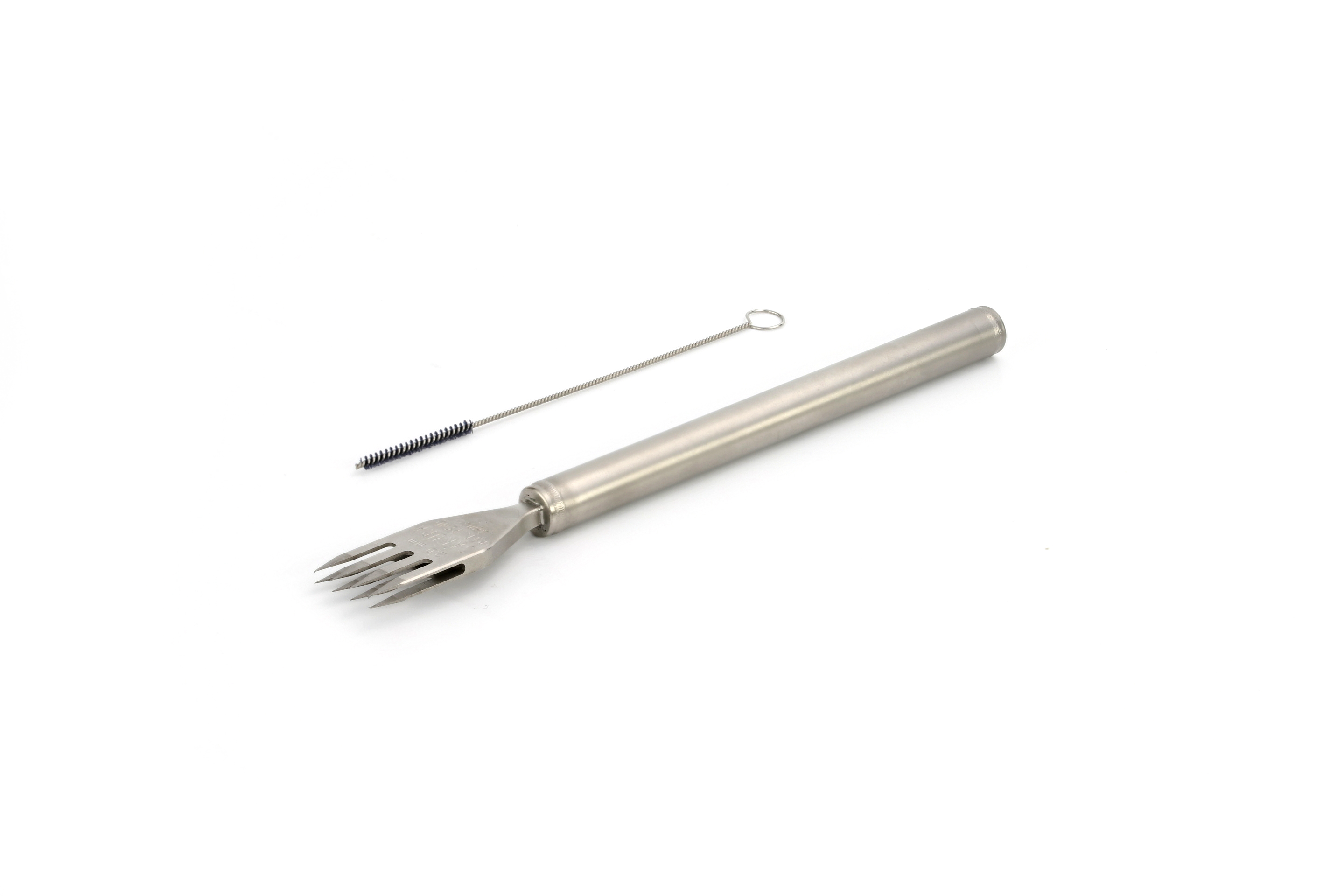

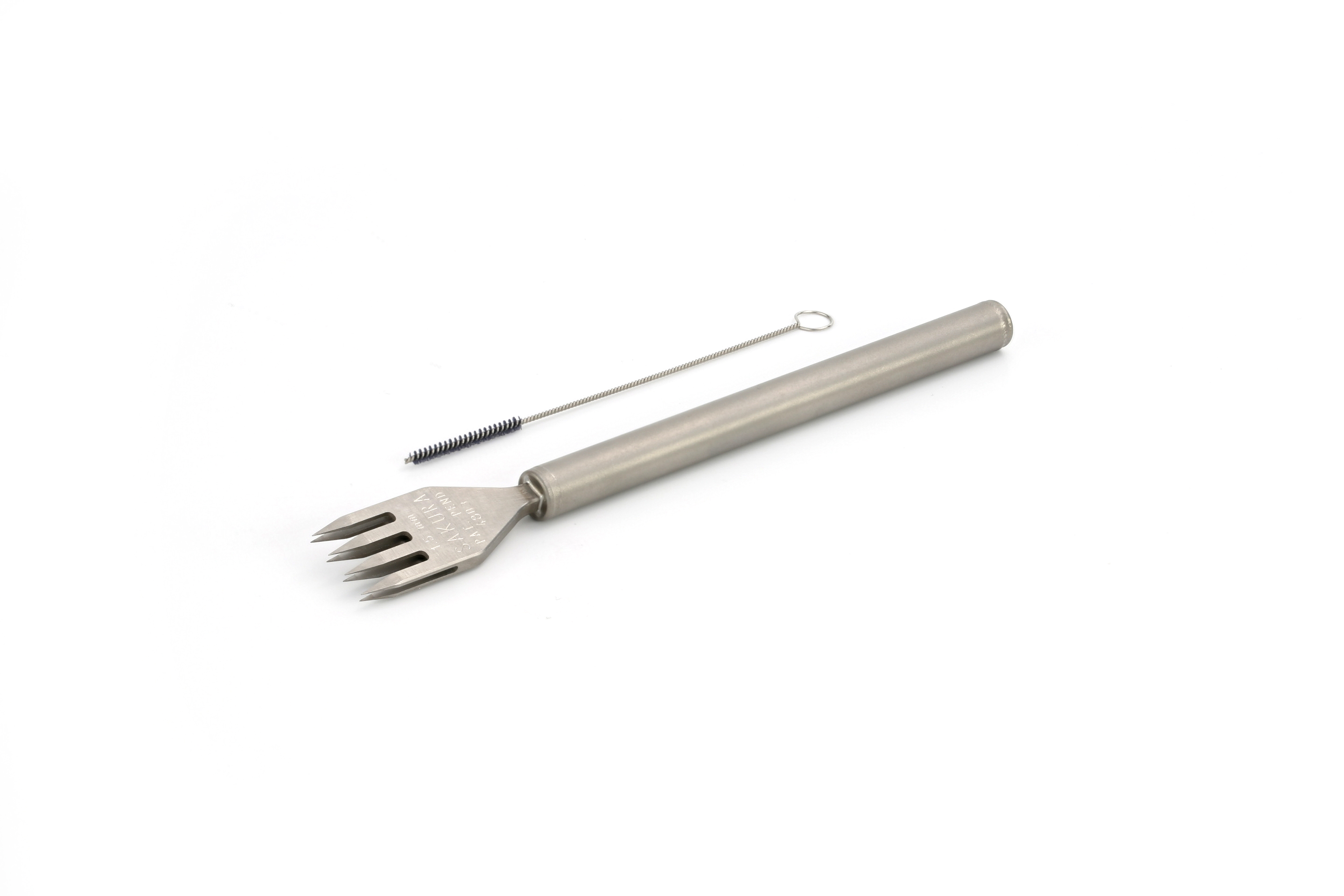

The Tissue-Tek Accu-Edge Grossing Tools product line also includes three Grossing Forks designed to easily gross difficult specimens including skin, arterial, colon and specimens with layers, while maintaining perfect specimen form and integrity. Each fork is designed with two sets of sharp tines, separated by a space measuring 1.5, 2.0, or 2.5 mm. Tissue-Tek® Accu-Edge® Grossing Forks hold the tissue in place while sliding a trimming or scalpel blade against the outer surfaces of the fork, resulting in a section of the desired thickness between the tines.

In addition, Tissue-Tek® Accu-Edge® Trimming Knives and Scalpel Blades provide the sharp cuts necessary for exact grossing techniques.

A set of Tissue-Tek Accu-Edge Grossing Tools comes standard with the Tissue-Tek Xpress® xSeries Rapid Tissue Processor. When used together, these instruments ensure standardized tissue processing results for accurate diagnosis.

Features

     Benefits

2 adjustable grossing wells
  • Standardization; ensures specimens are of exact, uniform thickness throughout
Grossing Forks
  • Standardize and simplify grossing of hollow organs
  • Available in 3 sizes (1.5, 2.0, and 2.5 mm)
Easy to clean
  • Minimizing the risk of cross-contamination between cases

Product name Tissue-Tek® Accu-Edge® Grossing Board
Tissue-Tek® Accu-Edge® Grossing Wells
Tissue-Tek® Accu-Edge® Grossing Wells, Left-handed
Product code 4800
4802
4848
Application Grossing
Dimensions 17.0 (W) x 11.5 (D) x 1.0 (H) inches
43.2 (W) x 29.2 (D) x 2.5 (H) cm

12.9 (W) x 3.3 (D) x 2.2 (H) inches
32.8 (W) x 8.3 (D) x 5.5 (H) cm
Grossing wells Individually adjusted from 1.5 to 3.0 mm
Regulatory status IVD Class I

Product code

Product name and quantity

4803 Tissue-Tek® Accu-Edge® Grossing Fork 1.5 mm
4804 Tissue-Tek® Accu-Edge® Grossing Fork 2.0 mm
4807 Tissue-Tek® Accu-Edge® Grossing Fork 2.5 mm
4785 Tissue-Tek® Accu-Edge® Trimming Blades; 50/case
4786 Tissue-Tek® Accu-Edge® Trimming Handle, Short/Straight
4791 Tissue-Tek® Accu-Edge® Dissecting Scalpel Handle
4793 Tissue-Tek® Accu-Edge® Dissecting Scalpel Blades, Pointed; 20/case
4792 Tissue-Tek® Accu-Edge® Dissecting Scalpel Blades, Curved; 20/case
0105 Tissue-Tek® Accu-Edge® Grossing Station, Elevating with Hands-Free Controls
0106 Tissue-Tek® Accu-Edge® Grossing Station, Elevating without Hands-Free Controls
0107 Tissue-Tek® Accu-Edge® Grossing Station, Fixed Height with Hands-Free Controls
0108 Tissue-Tek® Accu-Edge® Grossing Station, Fixed Height without Hands-Free Controls
0110 Tissue-Tek® Accu-Edge® Grossing Station, Countertop
0115 Tissue-Tek® Accu-Edge® Grossing Station, Pathology Workstation
0137 Tissue-Tek® Accu-Edge® Grossing Station, PathPRO™, Elevating
0138 Tissue-Tek® Accu-Edge® Grossing Station, PathPRO™, Fixed Height
9150 Tissue-Tek® FormaGO® Formalin Neutralizer Starter Kit
9151 Tissue-Tek® FormaGO® Formalin Neutralizer; 16/case
9152 Tissue-Tek® FormaGO® Formaldehyde Analysis Kit; 2 reagent bottles, 100 strips
9154 Tissue-Tek® FormaGO® Formalin Absorption Wipes; 100/case
9155 Tissue-Tek® FormaGO® Formalin Absorption Pads, Small; 1,000/case
9156 Tissue-Tek® FormaGO® Formalin Absorption Pads, Medium; 200/case
9157 Tissue-Tek® FormaGO® Formalin Absorption Pads, Large; 100/case
9158 Tissue-Tek® FormaGO® Formalin Absorption Granules; 2/case
9159 Tissue-Tek® FormaGO® Formalin Neutralizer Container
PI-HDG PAXcamHD Gross Imaging Camera plus Software
