Tissue-Tek® Accu-Edge® FLEX Grossing Stations
Maximize flexibility, performance, and safety in your grossing area
This is new text
Are you dealing with?
- Uncomfortable workstations that do not accommodate different users
- Grossing tools and accessories that cannot be easily accessed
- Ventilation problems that compromise safety
Imagine having …
… a workspace that adapts to you! Designed for efficiency, safety, and configured for you and by you!

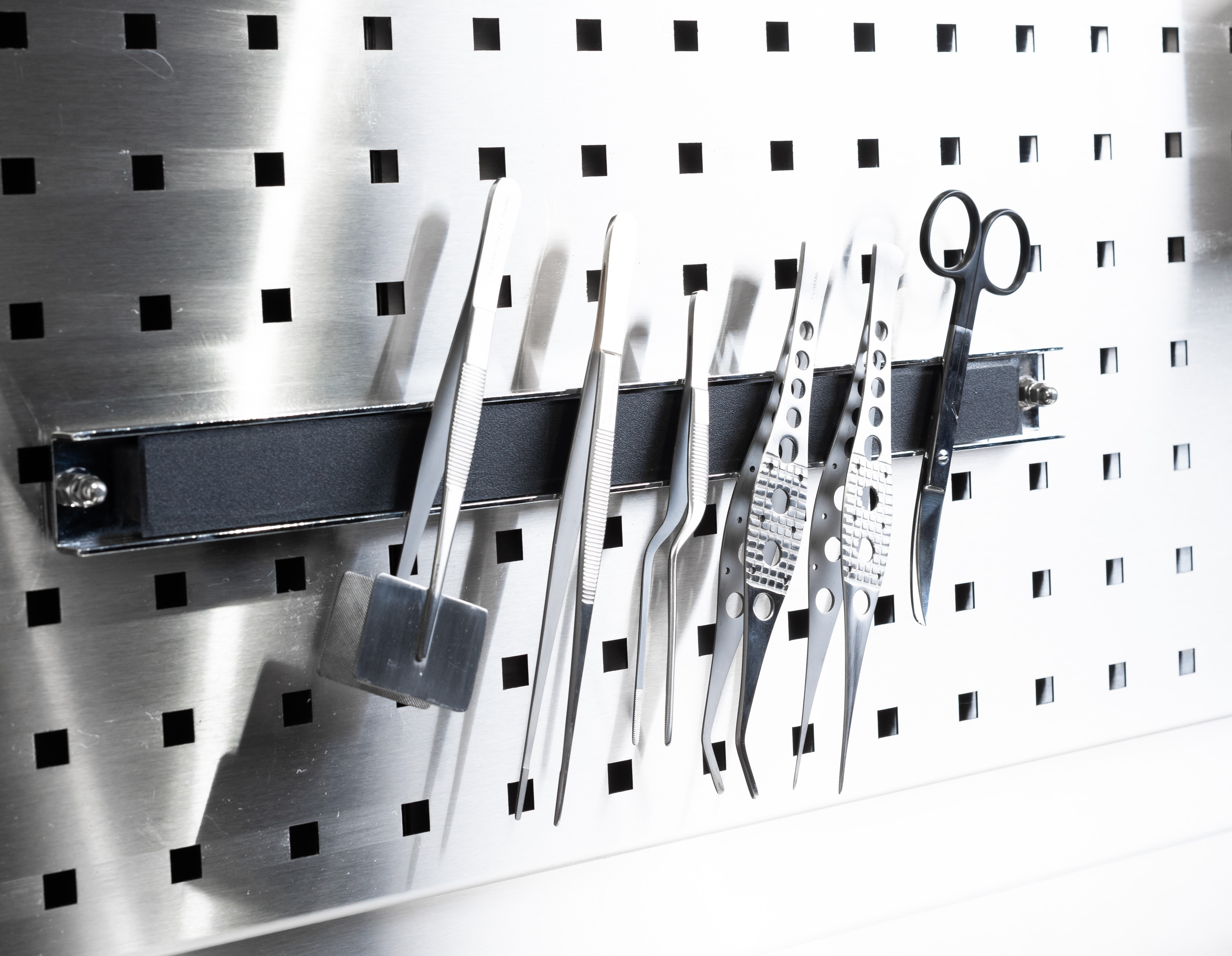

- Pegboard backsplash
Enables flexible placement of grossing tools, accessories, and consumables as desired - Touchscreen control panel
Intuitive touch screen for adjusting lighting, airflow, timers, and settings - LED recessed lights
Provides bright illumination of the workspace to better see and gross specimens - Front and side shelving

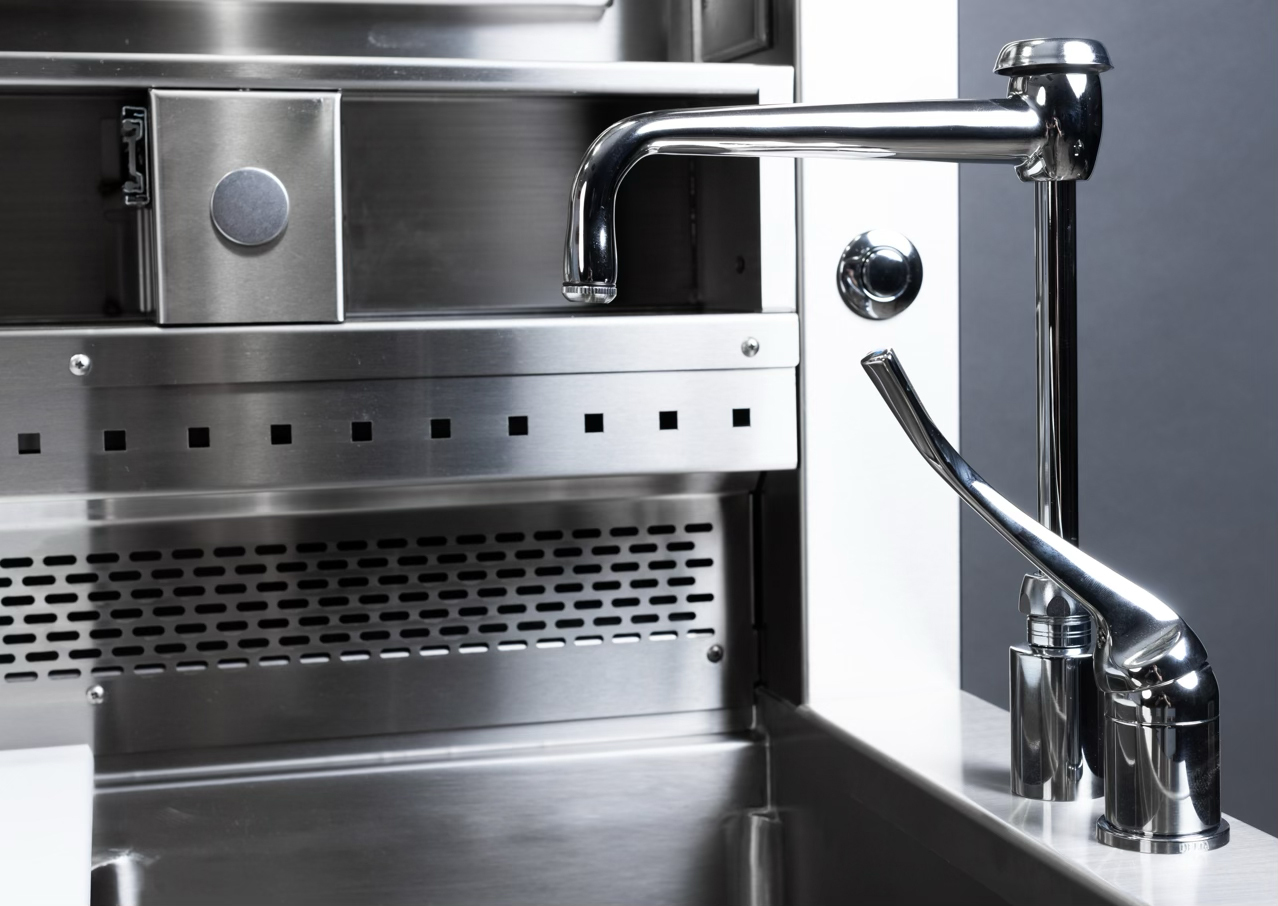

To accommodate placing device like an on-demand cassette printer - Sink with mixing faucet
Provides running water to the grossing station, with hot/cold mixing control, comes with a 1/2 HP disposal - Motorized elevation
Adjusts the bench level from 32 to 44 inches to accommodate laboratory personnel of different height - Wide range of accessories
Leverage more than 65 accessories to design the grossing station of your dreams
- Backdraft exhaust
Ventilation with dual 8” duct stubs for in-house ventilation - Motorized elevation
Adjusts the bench level from 32 to 44 inches to accommodate laboratory personnel of different height - 304 stainless steels
Long-lasting construction made in U.S.A. - Four (4) G.F.C.I. receptacles

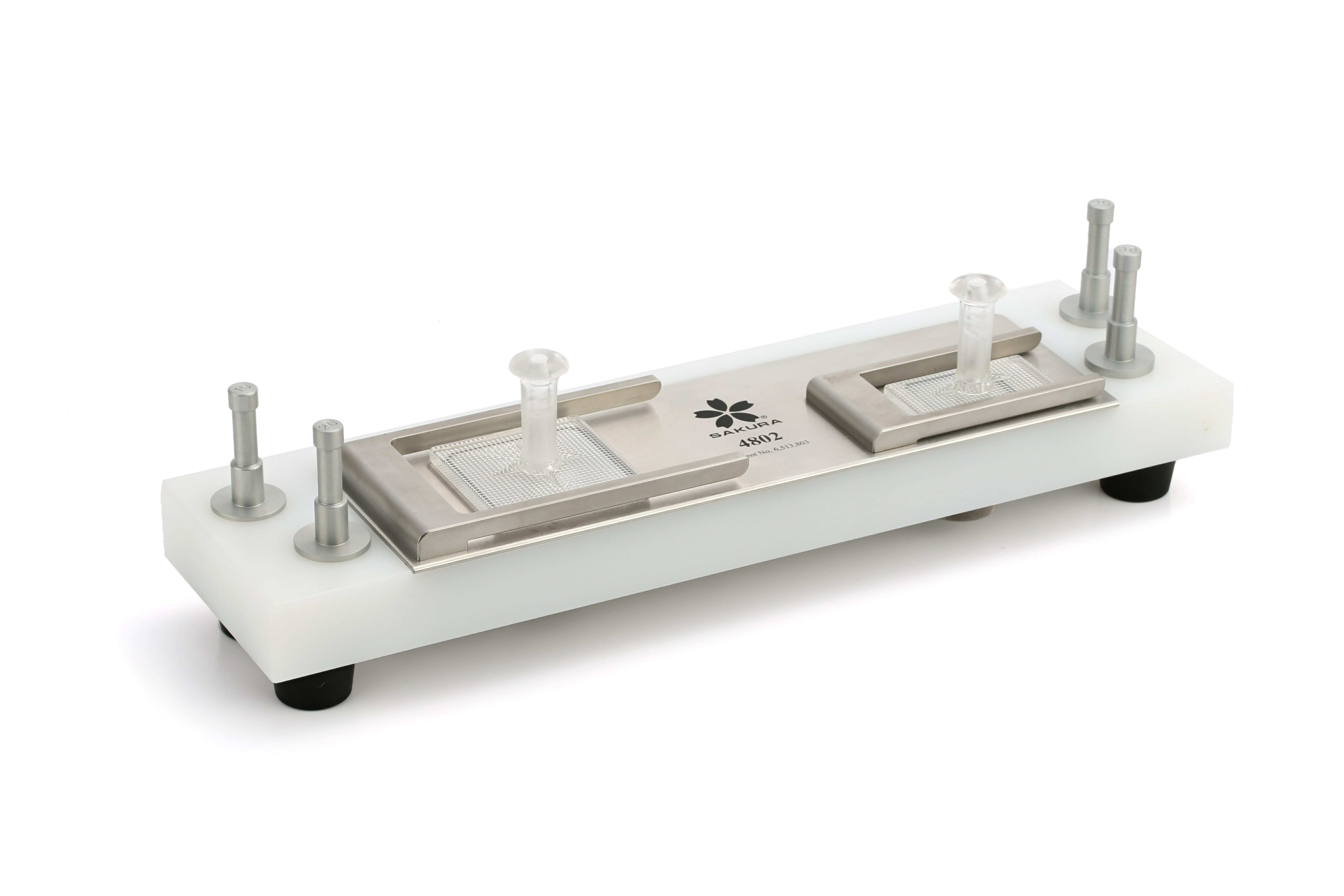

To power devices like a monitor; two (2) include a USB port - 2 adjustable grossing wells
Standardization; ensures specimens are of exact, uniform thickness throughout
|
Product name |
Tissue-Tek® Accu-Edge® FLEX Elevating Grossing Stations Tissue-Tek® Accu-Edge® FLEX Grossing Stations Tissue-Tek® Accu-Edge® FLEX Countertop Grossing Stations |
|---|---|
|
Product code |
0400–0410, 0483, 0485 0411–0420, 0484, 0486 0487–0498 |
|
Application |
Grossing of human and animal specimens |
|
Dimensions |
48 (L) x 32 (W) x 75 to 87 (H) inches (1.2m L x 0.8m W x 1.9 to 2.2m H) 60 (L) x 32 (W) x 75 to 87 (H) inches (1.5m L x 0.8m W x 1.9 to 2.2m H) 72 (L) x 32 (W) x 75 to 87 (H) inches (1.8m L x 0.8m W x 1.9 to 2.2m H) 96 (L) x 32 (W) x 75 to 87 (H) inches (2.4m L x 0.8m W x 1.9 to 2.2m H) |
|
Weight |
48-inch station, 552 lbs. (251 kg) 60-inch station, 885 lbs. (401 kg) 72-inch station, 950 lbs. (431 kg) 96-inch station, 1,100 lbs. (499 kg) |
|
Power requirement |
115-250 V, 1 PH 50/60Hz, 15A @ 115 VAC, 10A @ 250 VAC |
|
Standard features of all grossing stations |
Stainless steel construction 10” (25.4 cm) deep sink located on the right or left side (as configured) Backdraft ventilation External ventilation duct stubs with (2x) 8″ (20.32 cm) round flex ducts Touch screen control panel and alert system Seismic anchoring points Integrated hood-mounted camera cut-out and cover plate Faucet mixing-flow control Side/column accessory mounts (4) Power outlets rated at 15amps: (2 G.F.C.I. receptacles, 2 with USB power) One (1) perforated grid plate One (1) sliding work surface cutting board, white Two (2) wire ports for cord management 1/2 Hp. Disposal Magnetic instrument bar One (1) large and one (1) small organizer bin Replaceable ventilation filter mount in the front grill |
|
Product Code |
Product name and quantity |
|---|---|
|
0421 |
Tissue-Tek® Accu-Edge® FLEX, Cabinet Doors for Leg Area |
|
0422 |
Tissue-Tek® Accu-Edge® FLEX, Shelf Mounted Gooseneck Safety Splash Shield |
|
0423 |
Tissue-Tek® Accu-Edge® FLEX, Recirculation Air Filtration Unit, 60 inches |
|
0426 |
Tissue-Tek® Accu-Edge® FLEX, Red GFCI and USB Outlets (*) |
|
0427 |
Tissue-Tek® Accu-Edge® FLEX, Formalin Dispensing & Collection System |
|
0428 |
Tissue-Tek® Accu-Edge® , Building Management System Alert Integration/p> |
|
0429 |
Tissue-Tek® Accu-Edge® FLEX, Hand Sprayer & End Rinse Combination, Left Hand Sink Units |
|
0430 |
Tissue-Tek® Accu-Edge® FLEX, Hand Sprayer & End Rinse Combination, Right Hand Sink Units |
|
0431 |
Tissue-Tek® Accu-Edge® FLEX, Formalin Dispensing System |
|
0432 |
Tissue-Tek® Accu-Edge® FLEX, Formalin Collection System |
|
0433 |
Tissue-Tek® Accu-Edge® FLEX, Foot Pedal Control for Faucet |
|
0434 |
Tissue-Tek® Accu-Edge® FLEX, Infrared Sensor Control for Faucet |
|
0435 |
Tissue-Tek® Accu-Edge® FLEX, Stationary Monitor Mount for Pegboard |
|
0436 |
Tissue-Tek® Accu-Edge® FLEX, Requisition Holder for Pegboard |
|
0437 |
Tissue-Tek® Accu-Edge® FLEX, Ticket Holder for Pegboard |
|
0438 |
Tissue-Tek® Accu-Edge® FLEX, Marking Dye Holder for Pegboard |
|
0439 |
Tissue-Tek® Accu-Edge® FLEX, 14″ Shelf for Pegboard |
|
0440 |
Tissue-Tek® Accu-Edge® FLEX, Small Bin for Pegboard |
|
0441 |
Tissue-Tek® Accu-Edge® FLEX, Large Bin for Pegboard |
|
0442 |
Tissue-Tek® Accu-Edge® FLEX, C-fold Glove/Paper Towel Bin for Pegboard |
|
0443 |
Tissue-Tek® Accu-Edge® FLEX, Double C-fold Glove/Paper Towel Bin for Pegboard |
|
0444 |
Tissue-Tek® Accu-Edge® FLEX, Triple C-fold Glove/Paper Towel Bin for Pegboard |
|
0445 |
Tissue-Tek® Accu-Edge® FLEX, Quad C-fold Glove/Paper Towel Bin for Pegboard |
|
0446 |
Tissue-Tek® Accu-Edge® FLEX, Magnetic Tool Bar for Pegboard |
|
0448 |
Tissue-Tek® Accu-Edge® FLEX, Barcode Scanner Holster for Pegboard |
|
0449 |
Tissue-Tek® Accu-Edge® FLEX, Face Shield Holster for Pegboard |
|
0450 |
Tissue-Tek® Accu-Edge® FLEX, Glasses Holster for Pegboard |
|
0451 |
Tissue-Tek® Accu-Edge® FLEX, Wipe Dispenser for Pegboard |
|
0452 |
Tissue-Tek® Accu-Edge® FLEX, Garbage Disposal Upgrade to 1 HP with Waterjet (*) |
|
0453 |
Tissue-Tek® Accu-Edge® FLEX, Left Side Pegboard Wing Extension |
|
0454 |
Tissue-Tek® Accu-Edge® FLEX, Right Side Pegboard Wing Extension |
|
0455 |
Tissue-Tek® Accu-Edge® FLEX, Articulating Keyboard Arm for Vertical Rail |
|
0456 |
Tissue-Tek® Accu-Edge® FLEX, CPU Mount for Side of Hood |
|
0457 |
Tissue-Tek® Accu-Edge® FLEX, Monitor Arm for Vertical Rail |
|
0458 |
Tissue-Tek® Accu-Edge® FLEX, Hitch Mounted Countertop Writing Ledge |
|
0459 |
Tissue-Tek® Accu-Edge® FLEX, Countertop Light Bar |
|
0460 |
Tissue-Tek® Accu-Edge® FLEX, Countertop Grid Plate (*) |
|
0461 |
Tissue-Tek® Accu-Edge® FLEX, Hitch Mount Adapter for Countertop (*) |
|
0462 |
Tissue-Tek® Accu-Edge® FLEX, Vented Trash Can on Wheels, Left |
|
0463 |
Tissue-Tek® Accu-Edge® FLEX, Vented Trash Can on Wheels, Right |
|
0464-48 |

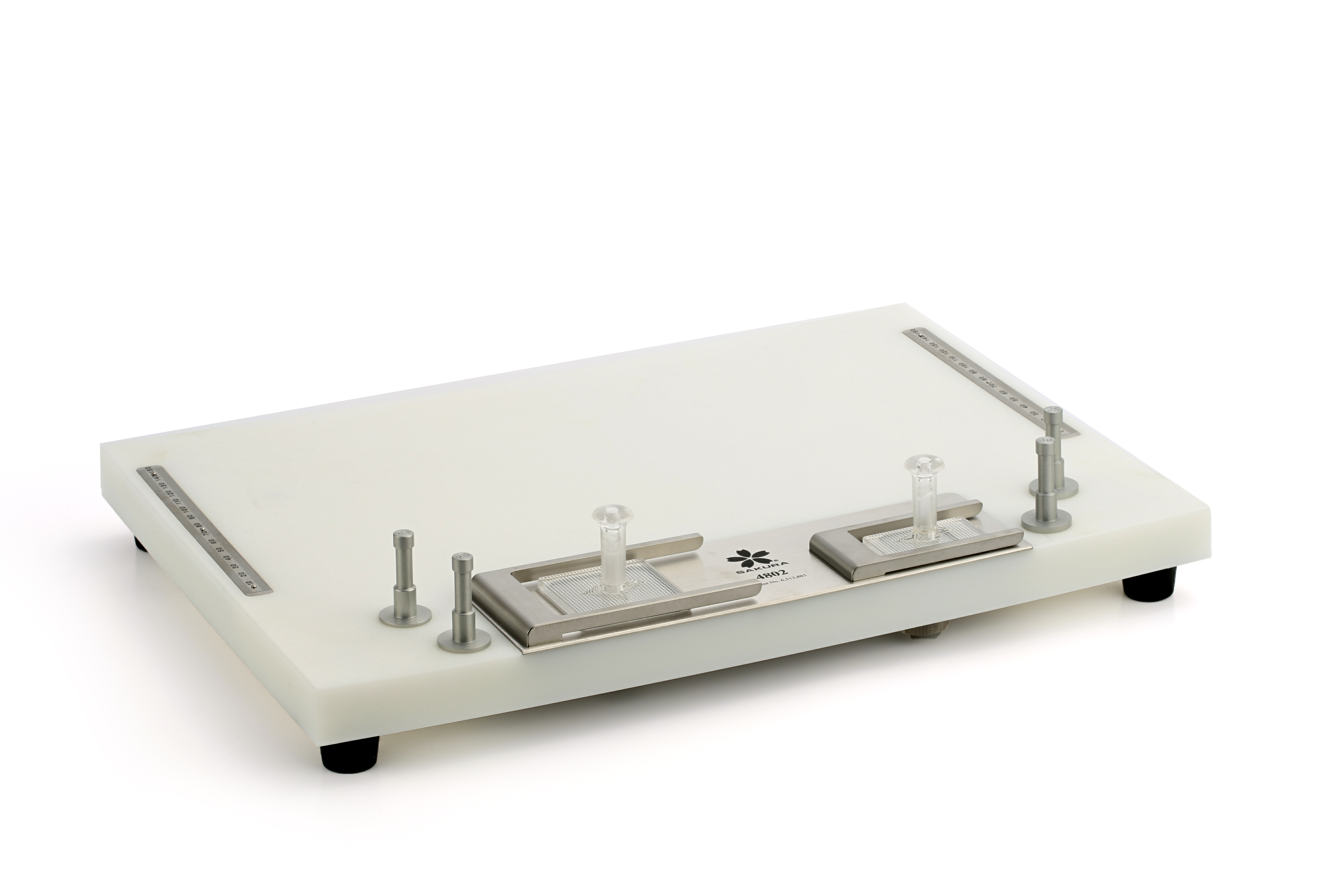

Tissue-Tek® Accu-Edge® FLEX, Dissection Board, White, for 48-inch Grossing Stations, 15” L x 18.5” W x 0.8” H |
|
0464-60 |
Tissue-Tek® Accu-Edge® FLEX, Dissection Board, White, for 60-inch Grossing Stations, 27” L x 18.5” W x 0.8” H |
|
0464-72 |
Tissue-Tek® Accu-Edge® FLEX, Dissection Board, White, for 72-inch Grossing Stations, 38” L x 18.5” W x 0.8” H |
|
0464-96 |
Tissue-Tek® Accu-Edge® FLEX, Dissection Board, White, for 96-inch Grossing Stations, 21” L x 18.5” W x 0.8” H; 2/set |
|
0465-48 |
Tissue-Tek® Accu-Edge® FLEX, Dissection Board, White w/ 3” Legs, for 48-inch Grossing Stations, 15” L x 18.5” W x 0.8” H |
|
0465-60 |
Tissue-Tek® Accu-Edge® FLEX, Dissection Board, White w/ 3” Legs, for 60-inch Grossing Stations, 27” L x 18.5” W x 0.8” H” |
|
0465-72 |
Tissue-Tek® Accu-Edge® FLEX, Dissection Board, White w/ 3” Legs, for 72-inch Grossing Stations, 38” L x 18.5” W x 0.8” H” |
|
0465-96 |
Tissue-Tek® Accu-Edge® FLEX, Dissection Board, White w/ 3” Legs, for 96-inch Grossing Stations, 21” L x 18.5” W x 0.8” H; 2/set” |
|
0466-48 |
Tissue-Tek® Accu-Edge® FLEX, Dissection Board, Light Blue, for 48-inch Grossing Stations, 15” L x 18.5” W x 0.8” H |
|
0466-60 |
Tissue-Tek® Accu-Edge® FLEX, Dissection Board, Light Blue, for 60-inch Grossing Stations, 27” L x 18.5” W x 0.8” H |
|
0466-72 |
Tissue-Tek® Accu-Edge® FLEX, Dissection Board, Light Blue, for 72-inch Grossing Stations, 38” L x 18.5” W x 0.8” H” |
|
0466-96 |
Tissue-Tek® Accu-Edge® FLEX, Dissection Board, Light Blue, for 96-inch Grossing Stations, 21” L x 18.5” W x 0.8” H; 2/set” |
|
0467-48 |
Tissue-Tek® Accu-Edge® FLEX, Dissection Board, Light Blue w/ 3” Legs, for 48-inch Grossing Stations, 15” L x 18.5” W x 0.8” H” |
|
0467-60 |
Tissue-Tek® Accu-Edge® FLEX, Dissection Board, Light Blue w/ 3” Legs, for 60-inch Grossing Stations, 27” L x 18.5” W x 0.8” H” |
|
0467-72 |
Tissue-Tek® Accu-Edge® FLEX, Dissection Board, Light Blue w/ 3” Legs, for 72-inch Grossing Stations, 38” L x 18.5” W x 0.8” H” |
|
0467-96 |
Tissue-Tek® Accu-Edge® FLEX, Dissection Board, Light Blue w/ 3” Legs, for 96-inch Grossing Stations, 21” L x 18.5” W x 0.8” H; 2/set” |
|
0468-48 |
Tissue-Tek® Accu-Edge® FLEX, Dissection Board, Dark Blue, for 48-inch Grossing Stations, 15” L x 18.5” W x 0.8” H” |
|
0468-60 |
Tissue-Tek® Accu-Edge® FLEX, Dissection Board, Dark Blue, for 60-inch Grossing Stations, 27” L x 18.5” W x 0.8” H” |
|
0468-72 |
Tissue-Tek® Accu-Edge® FLEX, Dissection Board, Dark Blue, for 72-inch Grossing Stations, 38” L x 18.5” W x 0.8” H” |
|
0468-96 |
Tissue-Tek® Accu-Edge® FLEX, Dissection Board, Dark Blue, for 96-inch Grossing Stations, 21” L x 18.5” W x 0.8” H; 2/set” |
|
0469-48 |
Tissue-Tek® Accu-Edge® FLEX, Dissection Board, Dark Blue w/ 3” Legs, for 48-inch Grossing Stations, 15” L x 18.5” W x 0.8” H” |
|
0469-60 |
Tissue-Tek® Accu-Edge® FLEX, Dissection Board, Dark Blue w/ 3” Legs, for 60-inch Grossing Stations, 27” L x 18.5” W x 0.8” H” |
|
0469-72 |
Tissue-Tek® Accu-Edge® FLEX, Dissection Board, Dark Blue w/ 3” Legs, for 72-inch Grossing Stations, 38” L x 18.5” W x 0.8” H” |
|
0469-96 |
Tissue-Tek® Accu-Edge® FLEX, Dissection Board, Dark Blue w/ 3” Legs, for 96-inch Grossing Stations, 21” L x 18.5” W x 0.8” H; 2/set |
|
0470 |
Tissue-Tek® Accu-Edge® FLEX, Filtration Scheduling & Alert System |
|
0471 |
Tissue-Tek® Accu-Edge® FLEX, Countertop Dictation Stand, 7x5x8″ @55 Degree Angle |
|
0472 |
Tissue-Tek® Accu-Edge® FLEX, 7 inch Shelf for Pegboard |
|
0473 |
Tissue-Tek® Accu-Edge® FLEX, Cassette Labeling Shelf, Left Side |
|
0474 |
Tissue-Tek® Accu-Edge® FLEX, Cassette Labeling Shelf, Right Side |
|
0475 |
Tissue-Tek® Accu-Edge® FLEX, Removeable Countertop Inch/cm Scale Label (*) |
|
0476 |
Tissue-Tek® Accu-Edge® FLEX, Shelf Mounted Single Gooseneck LED Task Light |
|
0477 |
Tissue-Tek® Accu-Edge® FLEX, Shelf Mounted Dual Gooseneck LED Task Light |
|
0478 |
Tissue-Tek® Accu-Edge® FLEX, Small Drawer |
|
0479 |
Tissue-Tek® Accu-Edge® FLEX, Small Instrument Drawer |
|
0480 |
Tissue-Tek® Accu-Edge® FLEX, Large Drawer |
|
0481 |
Tissue-Tek® Accu-Edge® FLEX, Airflow Monitoring & Alert System |
|
0482 |
Tissue-Tek® Accu-Edge® FLEX, Countertop Hitch Mounted Keyboard (*) |
|
0499 |
Tissue-Tek® Accu-Edge® FLEX, Recirculating Air Filtration Unit, 48 inches |
|
0501 |
Tissue-Tek® Accu-Edge® FLEX, Potassium Permanganate Filters for Recirculating 48-inch Configured Grossing Stations; 2 filters/set |
|
0502 |
Tissue-Tek® Accu-Edge® FLEX, Potassium Permanganate Filters for Recirculating 60-inch Configured Grossing Stations; 2 filters/set |
|
0503 |
Tissue-Tek® Accu-Edge® FLEX, Potassium Permanganate Filters for Recirculating 72-inch Configured Grossing Stations; 2 filters/set |
|
0504 |
Tissue-Tek® Accu-Edge® FLEX, Potassium Permanganate Filters for Recirculating 96-inch Configured Grossing Stations; 4 filters/set |
|
0510 |
Tissue-Tek® Accu-Edge® FLEX, In-Grill Ventilation Particulate Filter for 48-inch Grossing Stations |
|
0511 |
Tissue-Tek® Accu-Edge® FLEX, In-Grill Ventilation Particulate Filter for 60-inch Grossing Stations |
|
0512 |
Tissue-Tek® Accu-Edge® FLEX, In-Grill Ventilation Particulate Filter for 72-inch Grossing Stations |
|
0513 |
Tissue-Tek® Accu-Edge® FLEX, In-Grill Ventilation Particulate Filters for 96-inch Grossing Stations; 2 filters/set |
|
0615 |
Tissue-Tek® Accu-Edge® FLEX, Recirculating Air Filtration Unit, 72 inches |
|
0616 |
Tissue-Tek® Accu-Edge® FLEX, Recirculating Air Filtration Unit, 96 inches |
|
0617 |
Tissue-Tek® Accu-Edge® FLEX, Cabinet Doors for Legs Area, 48″; 2 doors per set, 1 set |
|
0618 |
Tissue-Tek® Accu-Edge® FLEX, Cabinet Doors for Legs Area, 72″; 2 doors per set, 1 set |
|
0619 |
Tissue-Tek® Accu-Edge® FLEX, Cabinet Doors for Legs Area, 96″; 2 doors per set, 2 sets |
(*) Available upon customer’s special request
