Histo-Tek® SL Slide Stainer

A histology stainer that is standardizing the staining process

The Histo-Tek® SL Slide Stainer is an automated slide stainer offering a new level of convenience and standardization for your low-volume laboratory needs, all at a low total cost of ownership.

The Histo-Tek SL Slide Stainer standardizes the staining process to optimize quality while reducing errors.  It allows for up to 15 programmable staining protocols with up to 35 steps.   The multi-directional robotic arm enables either progressive or regressive staining protocols and the 20 or 30-slide racks option make it ideal for low to medium volume laboratories.  It is a simple and intelligent Histology stainer for unsurpassed productivity – slide after slide.  With it, your lab can run H&E, PAP, frozen sections or special stains. A total of 24 reagent containers, including 2 independent wash stations, enable continuous loading of slide racks and accommodate multiple stain protocols. Optional special stain containers are designed to reduce reagent volumes and costs.  Additional relevant features of the slide stainer include: built-in fume extraction to improve lab staff safety, and an easy exchange of protocols through USB to standardize protocols throughout the lab while using multiple units.  The Histo-Tek SL Slide Stainer is designed for automation at your convenience in mind, making it one of the slide stainers with the highest levels of reliability and lowest maintenance on the market.


  • Compact footprint
    Fits on any laboratory workbench
  • Special stain reservoirs
    • Enables user to run H&E or special stains
    • Reduces reagent volumes and costs
  • User-defined programming
    Supports standardization of staining with full control
  • USB data port
    Easy exchange of protocols throughout the lab
  • Continuous load
    Increases throughput
  • User-friendly display
    Contrast can be adjusted to obtain clearest text based on the users’ viewing angle
  • Built-in fume extraction
    Improves safety of laboratory personnel

Product name

Histo-Tek® SL Slide Stainer

Product code

1900

Applications

H&E, special stains, PAP, frozen sections

Dimensions

33 (W) x 31 (D) x 16 (H) inches
81 (W) x 79 (D) x 41 (H) cm

Weight

55 lbs (25 kg)

Number of reservoirs

Start – 1 station
Reagents – 22 reservoirs
Wash – 2 stations

Capacity

Reagent volume – 350 mL
Staining protocols – 4 runs continuously loading and simultaneously running
Baskets – 20 or 30 slide baskets
Loading – up to 30 slides per run

Certifications

IEC 61010-1 2nd Ed.

Regulatory status

IVD, FDA Class I

Product code

Product name and quantity

1900

Histo-Tek® SL Slide Stainer; 115 VAC, 50/60 Hz

1901

Histo-Tek® SL 30-Slide Basket; 4/case

1902

Histo-Tek® SL 30-Slide Basket Adapter

1903

Histo-Tek® SL 20-Slide Basket Adapter

1905

Histo-Tek® SL Solution Reservoir, 350 mL

1906

Histo-Tek® SL Wash Reservoir, 350 mL

1907

Histo-Tek® SL Reservoir Lid, 350 mL

1908

Histo-Tek® SL Special Stain Reservoir

1909

Histo-Tek® SL 10-Slide Basket Adapter

1910

Histo-Tek® SL Drain Hose

1911

Histo-Tek® SL Water Supply Hose Set

1912

Histo-Tek® SL Carbon Filter; 2/case

1913

Histo-Tek® SL Exhaust Adapter and Hose

4740

Tissue-Tek Film® Automated Coverslipper

6500

Tissue-Tek® Glas™ g2 Glass Coverslipper

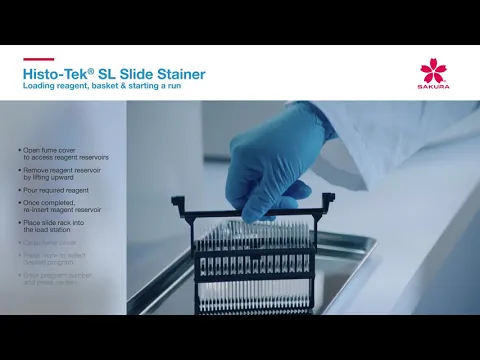

Video gallery
