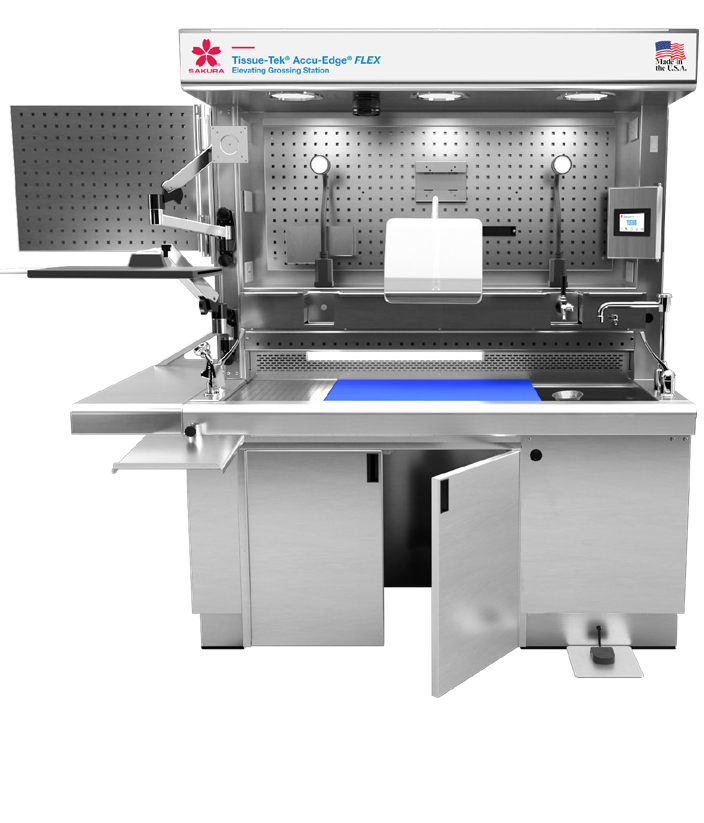

Tissue-Tek® Accu-Edge® FLEX Grossing Stations

    Imagine having ... … a workspace that adapts to you! Designed for efficiency, safety, and configured for you and by you!

    Maximize flexibility, performance, and safety in your grossing area

    Are you dealing with?

    • Uncomfortable workstations that do not accommodate different users
    • Grossing tools and accessories that cannot be easily accessed
    • Ventilation problems that compromise safety

    Imagine having ...

     … a workspace that adapts to you! Designed for efficiency, safety, and configured for you and by you!
    DESIGN YOUR ELEVATING
    GROSSING STATION
    DESIGN YOUR NON-ELEVATING /
    COUNTERTOP     GROSSING STATION

    Features

         Benefits
    Pegboard backsplash
    • Enables flexible placement of grossing tools, accessories, and consumables as desired
    Backdraft exhaust
    • Ventilation with dual 8” duct stubs for in-house ventilation
    Touchscreen control panel
    • Intuitive touch screen for adjusting lighting, airflow, timers, and settings
    Motorized elevation
    • Adjusts the bench level from 32 to 44 inches to accommodate laboratory personnel of different height
    LED recessed lights
    • Provides bright illumination of the workspace to better see and gross specimens
    304 stainless steels
    • Long-lasting construction made in U.S.A.
    Front and side shelving
    • To accommodate placing device like an on-demand cassette printer
    Four (4) G.F.C.I. receptacles
    • To power devices like a monitor; two (2) include a USB port

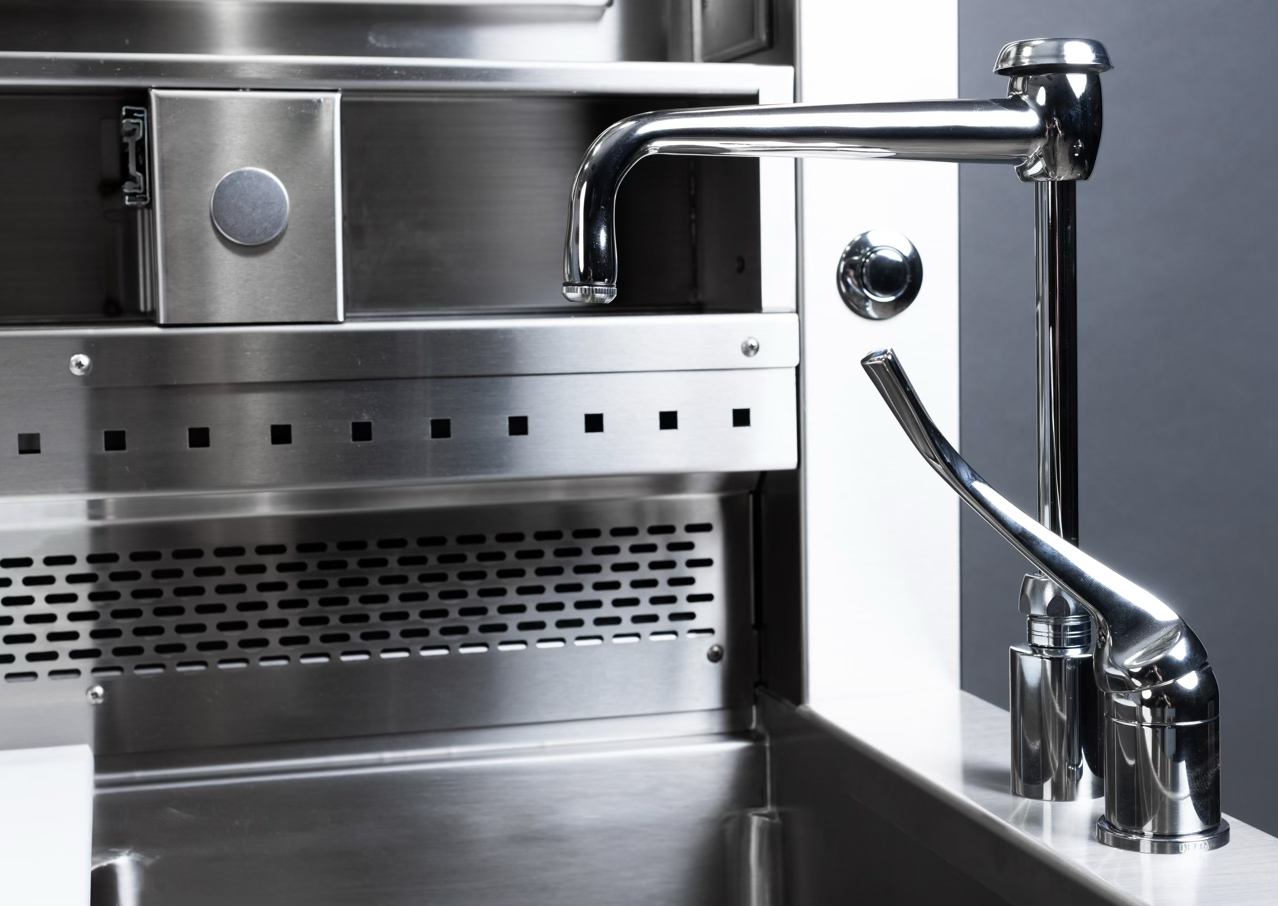

    Sink with mixing faucet
    • Provides running water to the grossing station, with hot/cold mixing control, comes with a 1/2 HP disposal
    2 adjustable grossing wells
    • Standardization; ensures specimens are of exact, uniform thickness throughout

    Options

    Benefits
    Motorized elevation
    • Adjusts the bench level from 32 to 44 inches to accommodate laboratory personnel of different height
    Wide range of accessories
    • Leverage more than 65 accessories to design the grossing station of your dreams
    Product name
    • Tissue-Tek® Accu-Edge® FLEX Elevating Grossing Stations
    • Tissue-Tek® Accu-Edge® FLEX Grossing Stations
    • Tissue-Tek® Accu-Edge® FLEX Countertop Grossing Stations
    Product code
    • 0400–0410, 0483, 0485
    • 0411–0420, 0484, 0486
    • 0487–0498
    Application
    • Grossing of human and animal specimens

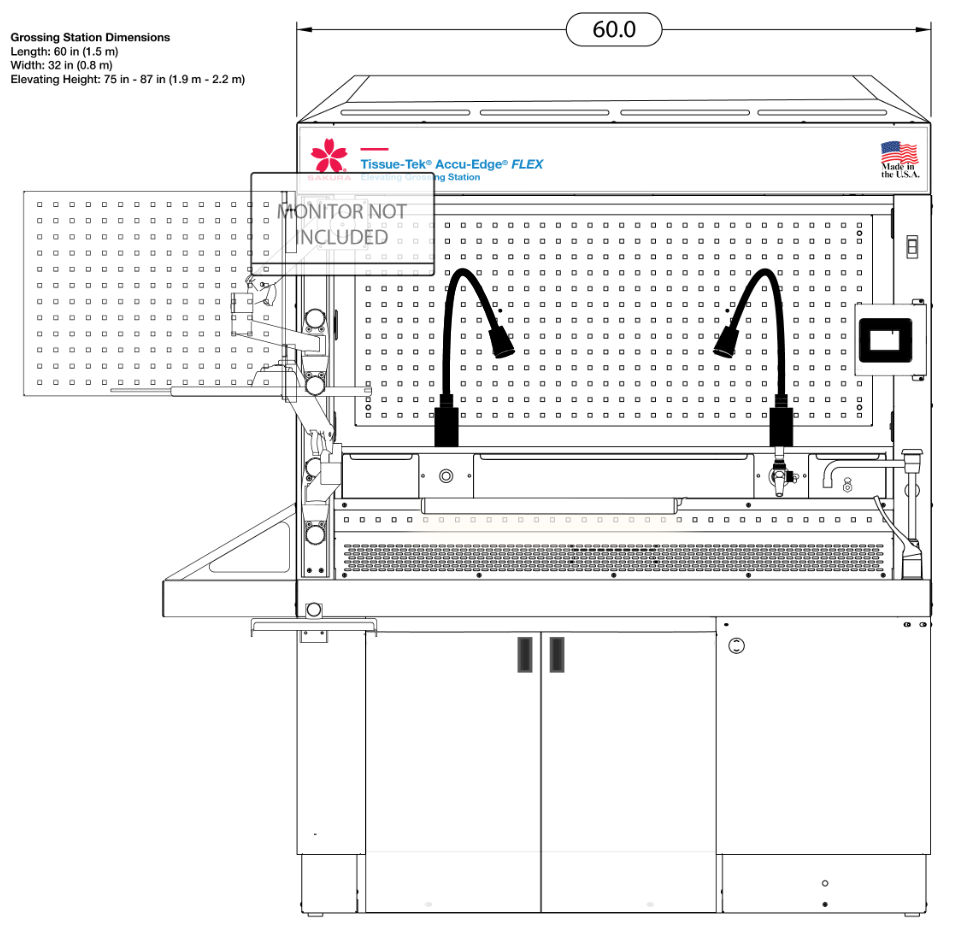

    Dimensions
    • 48 (L) x 32 (W) x 75 to 87 (H) inches (1.2m L x 0.8m W x 1.9 to 2.2m H)
    • 60 (L) x 32 (W) x 75 to 87 (H) inches (1.5m L x 0.8m W x 1.9 to 2.2m H)
    • 72 (L) x 32 (W) x 75 to 87 (H) inches (1.8m L x 0.8m W x 1.9 to 2.2m H)
    • 96 (L) x 32 (W) x 75 to 87 (H) inches (2.4m L x 0.8m W x 1.9 to 2.2m H)
    Weight
    • 48-inch station, 552 lbs. (251 kg)
    • 60-inch station, 885 lbs. (401 kg)
    • 72-inch station, 950 lbs. (431 kg)
    • 96-inch station, 1,100 lbs. (499 kg)
    Power requirement
    • 115-250 V, 1 PH 50/60Hz, 15A @ 115 VAC, 10A @ 250 VAC
    Standard features of all grossing stations
    • Stainless steel construction
    • 10” (25.4 cm) deep sink located on the right or left side (as configured)
    • Backdraft ventilation
    • External ventilation duct stubs with (2x) 8" (20.32 cm) round flex ducts
    • Touch screen control panel and alert system
    • Seismic anchoring points
    • Integrated hood-mounted camera cut-out and cover plate
    • Faucet mixing-flow control
    • Side/column accessory mounts
    • (4) Power outlets rated at 15amps: (2 G.F.C.I. receptacles, 2 with USB power)
    • One (1) perforated grid plate
    • One (1) sliding work surface cutting board, white
    • Two (2) wire ports for cord management
    • 1/2 Hp. Disposal
    • Magnetic instrument bar
    • One (1) large and one (1) small organizer bin
    • Replaceable ventilation filter mount in the front grill

    0421

    Tissue-Tek® Accu-Edge® FLEX, Cabinet Doors for Leg Area

    0422

    Tissue-Tek® Accu-Edge® FLEX, Shelf Mounted Gooseneck Safety Splash Shield

    0423

    Tissue-Tek® Accu-Edge® FLEX, Recirculation Air Filtration Unit, 60 inches

    0426

    Tissue-Tek® Accu-Edge® FLEX, Red GFCI and USB Outlets (*)

    0427

    Tissue-Tek® Accu-Edge® FLEX, Formalin Dispensing & Collection System

    0428

    Tissue-Tek® Accu-Edge® , Building Management System Alert Integration/p>

    0429

    Tissue-Tek® Accu-Edge® FLEX, Hand Sprayer & End Rinse Combination, Left Hand Sink Units

    0430

    Tissue-Tek® Accu-Edge® FLEX, Hand Sprayer & End Rinse Combination, Right Hand Sink Units

    0431

    Tissue-Tek® Accu-Edge® FLEX, Formalin Dispensing System

    0432

    Tissue-Tek® Accu-Edge® FLEX, Formalin Collection System

    0433

    Tissue-Tek® Accu-Edge® FLEX, Foot Pedal Control for Faucet

    0434

    Tissue-Tek® Accu-Edge® FLEX, Infrared Sensor Control for Faucet

    0435

    Tissue-Tek® Accu-Edge® FLEX, Stationary Monitor Mount for Pegboard

    0436

    Tissue-Tek® Accu-Edge® FLEX, Requisition Holder for Pegboard

    0437

    Tissue-Tek® Accu-Edge® FLEX, Ticket Holder for Pegboard

    0438

    Tissue-Tek® Accu-Edge® FLEX, Marking Dye Holder for Pegboard

    0439

    Tissue-Tek® Accu-Edge® FLEX, 14" Shelf for Pegboard

    0440

    Tissue-Tek® Accu-Edge® FLEX, Small Bin for Pegboard

    0441

    Tissue-Tek® Accu-Edge® FLEX, Large Bin for Pegboard

    0442

    Tissue-Tek® Accu-Edge® FLEX, C-fold Glove/Paper Towel Bin for Pegboard

    0443

    Tissue-Tek® Accu-Edge® FLEX, Double C-fold Glove/Paper Towel Bin for Pegboard

    0444

    Tissue-Tek® Accu-Edge® FLEX, Triple C-fold Glove/Paper Towel Bin for Pegboard

    0445

    Tissue-Tek® Accu-Edge® FLEX, Quad C-fold Glove/Paper Towel Bin for Pegboard

    0446

    Tissue-Tek® Accu-Edge® FLEX, Magnetic Tool Bar for Pegboard

    0448

    Tissue-Tek® Accu-Edge® FLEX, Barcode Scanner Holster for Pegboard

    0449

    Tissue-Tek® Accu-Edge® FLEX, Face Shield Holster for Pegboard

    0450

    Tissue-Tek® Accu-Edge® FLEX, Glasses Holster for Pegboard

    0451

    Tissue-Tek® Accu-Edge® FLEX, Wipe Dispenser for Pegboard

    0452

    Tissue-Tek® Accu-Edge® FLEX, Garbage Disposal Upgrade to 1 HP with Waterjet (*)

    0453

    Tissue-Tek® Accu-Edge® FLEX, Left Side Pegboard Wing Extension

    0454

    Tissue-Tek® Accu-Edge® FLEX, Right Side Pegboard Wing Extension

    0455

    Tissue-Tek® Accu-Edge® FLEX, Articulating Keyboard Arm for Vertical Rail

    0456

    Tissue-Tek® Accu-Edge® FLEX, CPU Mount for Side of Hood

    0457

    Tissue-Tek® Accu-Edge® FLEX, Monitor Arm for Vertical Rail

    0458

    Tissue-Tek® Accu-Edge® FLEX, Hitch Mounted Countertop Writing Ledge

    0459

    Tissue-Tek® Accu-Edge® FLEX, Countertop Light Bar

    0460

    Tissue-Tek® Accu-Edge® FLEX, Countertop Grid Plate (*)

    0461

    Tissue-Tek® Accu-Edge® FLEX, Hitch Mount Adapter for Countertop (*)

    0462

    Tissue-Tek® Accu-Edge® FLEX, Vented Trash Can on Wheels, Left

    0463

    Tissue-Tek® Accu-Edge® FLEX, Vented Trash Can on Wheels, Right

    0464

    Tissue-Tek® Accu-Edge® FLEX, Dissection Board, White (*)

    0465

    Tissue-Tek® Accu-Edge® FLEX, Dissection Board, White w/ 3" Legs (*)

    0466

    Tissue-Tek® Accu-Edge® FLEX, Dissection Board, Light Blue (*)

    0467

    Tissue-Tek® Accu-Edge® FLEX, Dissection Board, Light Blue w/ 3" Legs (*)

    0468

    Tissue-Tek® Accu-Edge® FLEX, Dissection Board, Dark Blue (*)

    0469

    Tissue-Tek® Accu-Edge® FLEX, Dissection Board, Dark Blue w/ 3" Legs (*)

    0470

    Tissue-Tek® Accu-Edge® FLEX, Filtration Scheduling & Alert System

    0471

    Tissue-Tek® Accu-Edge® FLEX, Countertop Dictation Stand, 7x5x8" @55 Degree Angle

    0472

    Tissue-Tek® Accu-Edge® FLEX, 7 inch Shelf for Pegboard

    0473

    Tissue-Tek® Accu-Edge® FLEX, Cassette Labeling Shelf, Left Side

    0474

    Tissue-Tek® Accu-Edge® FLEX, Cassette Labeling Shelf, Right Side

    0475

    Tissue-Tek® Accu-Edge® FLEX, Removeable Countertop Inch/cm Scale Label (*)

    0476

    Tissue-Tek® Accu-Edge® FLEX, Shelf Mounted Single Gooseneck LED Task Light

    0477

    Tissue-Tek® Accu-Edge® FLEX, Shelf Mounted Dual Gooseneck LED Task Light

    0478

    Tissue-Tek® Accu-Edge® FLEX, Small Drawer

    0479

    Tissue-Tek® Accu-Edge® FLEX, Small Instrument Drawer

    0480

    Tissue-Tek® Accu-Edge® FLEX, Large Drawer

    0481

    Tissue-Tek® Accu-Edge® FLEX, Airflow Monitoring & Alert System

    0482

    Tissue-Tek® Accu-Edge® FLEX, Countertop Hitch Mounted Keyboard (*)

    0499

    Tissue-Tek® Accu-Edge® FLEX, Recirculating Air Filtration Unit, 48 inches

    0501

    Tissue-Tek® Accu-Edge® FLEX, Potassium Permanganate Filters for Recirculating 48-inch Configured Grossing Stations; 2 filters/set

    0502

    Tissue-Tek® Accu-Edge® FLEX, Potassium Permanganate Filters for Recirculating 60-inch Configured Grossing Stations; 2 filters/set

    0503

    Tissue-Tek® Accu-Edge® FLEX, Potassium Permanganate Filters for Recirculating 72-inch Configured Grossing Stations; 2 filters/set

    0504

    Tissue-Tek® Accu-Edge® FLEX, Potassium Permanganate Filters for Recirculating 96-inch Configured Grossing Stations; 4 filters/set

    0510

    Tissue-Tek® Accu-Edge® FLEX, In-Grill Ventilation Particulate Filter for 48-inch Grossing Stations

    0511

    Tissue-Tek® Accu-Edge® FLEX, In-Grill Ventilation Particulate Filter for 60-inch Grossing Stations

    0512

    Tissue-Tek® Accu-Edge® FLEX, In-Grill Ventilation Particulate Filter for 72-inch Grossing Stations

    0513

    Tissue-Tek® Accu-Edge® FLEX, In-Grill Ventilation Particulate Filters for 96-inch Grossing Stations; 2 filters/set

    0615

    Tissue-Tek® Accu-Edge® FLEX, Recirculating Air Filtration Unit, 72 inches

    0616

    Tissue-Tek® Accu-Edge® FLEX, Recirculating Air Filtration Unit, 96 inches

    0617

    Tissue-Tek® Accu-Edge® FLEX, Cabinet Doors for Legs Area, 48"; 2 doors per set, 1 set

    0618

    Tissue-Tek® Accu-Edge® FLEX, Cabinet Doors for Legs Area, 72"; 2 doors per set, 1 set

    0619

    Tissue-Tek® Accu-Edge® FLEX, Cabinet Doors for Legs Area, 96"; 2 doors per set, 2 sets

    (*) Available upon customer's special request

    Search:
    Tissue-Tek® Accu-Edge® FLEX Grossing Stations
    Tissue-Tek<sup>®</sup> Accu-Edge<sup>®</sup> <i>FLEX </i>Grossing Stations
    Tissue-Tek<sup>®</sup> Accu-Edge<sup>®</sup> <i>FLEX </i>Grossing Stations
    DESIGN YOUR ELEVATING
    GROSSING STATION
    DESIGN YOUR NON-ELEVATING /
    COUNTERTOP     GROSSING STATION
    BROCHURE EN
    CATALOG
    REQUEST A QUOTE
    CONTACT US

    Gallery

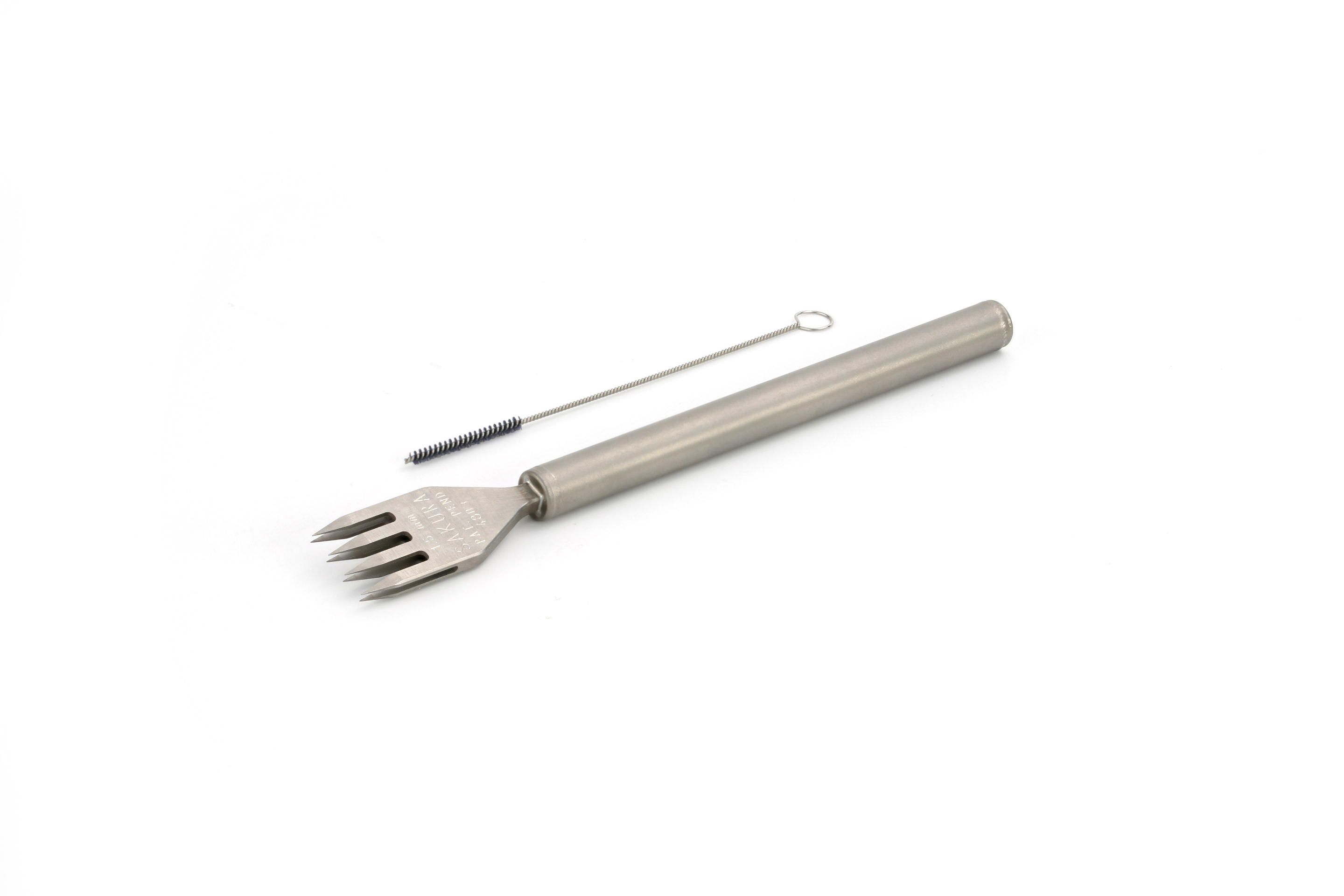

    Tissue-Tek Accu-Edge Forks
    Tissue-Tek® Accu-Edge® Grossing Forks

    They are designed for hollow organs or specimens with layers and are available in three sizes: 1.5 mm, 2.0 mm, and 2.5 mm. Each fork has two

    set of tines; the distance between the tines determines the size of the fork. They hold the tissue in place while sliding a trimming or scalpel blade against the outer surfaces of the fork results in a section of the desired thickness between the tines.

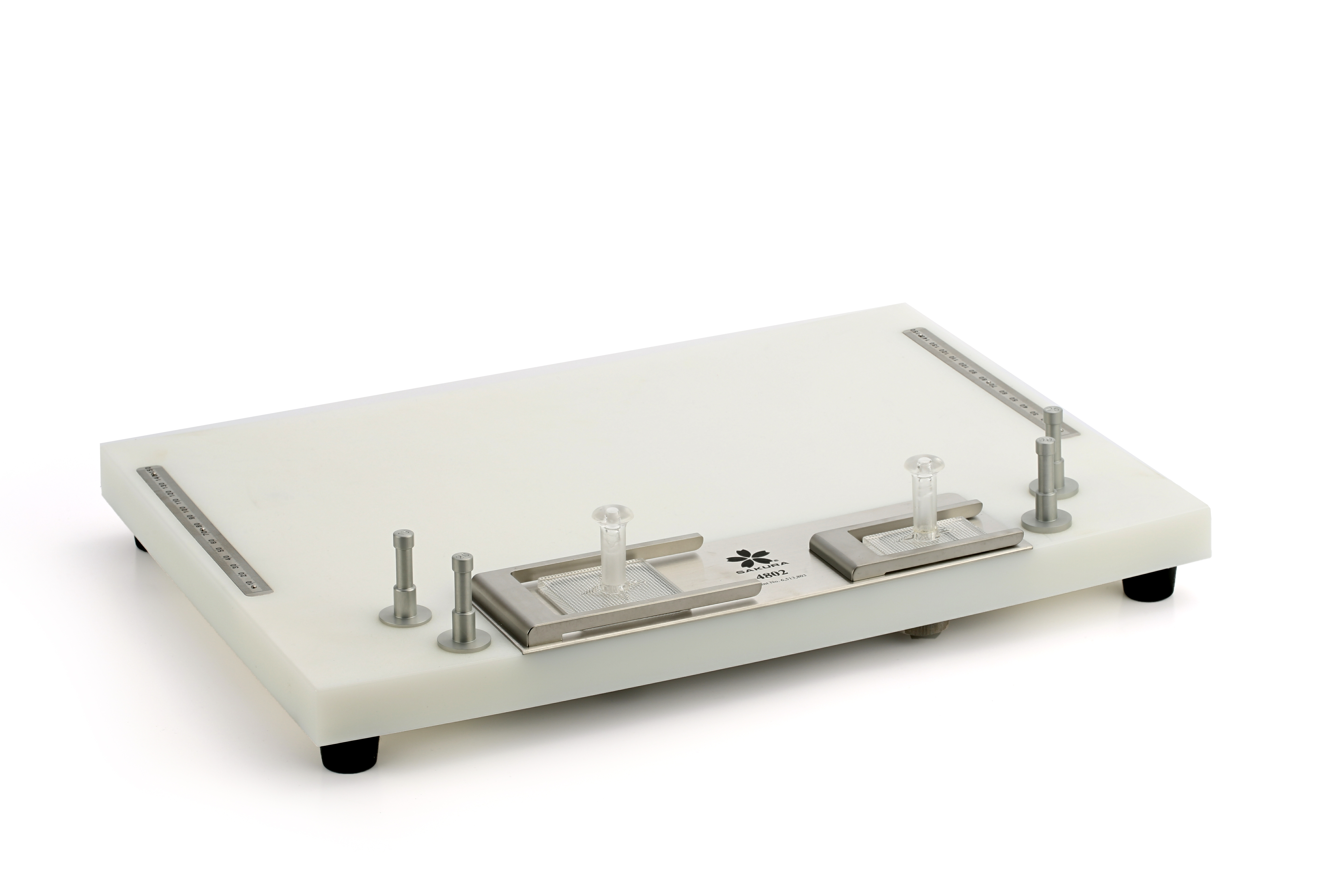

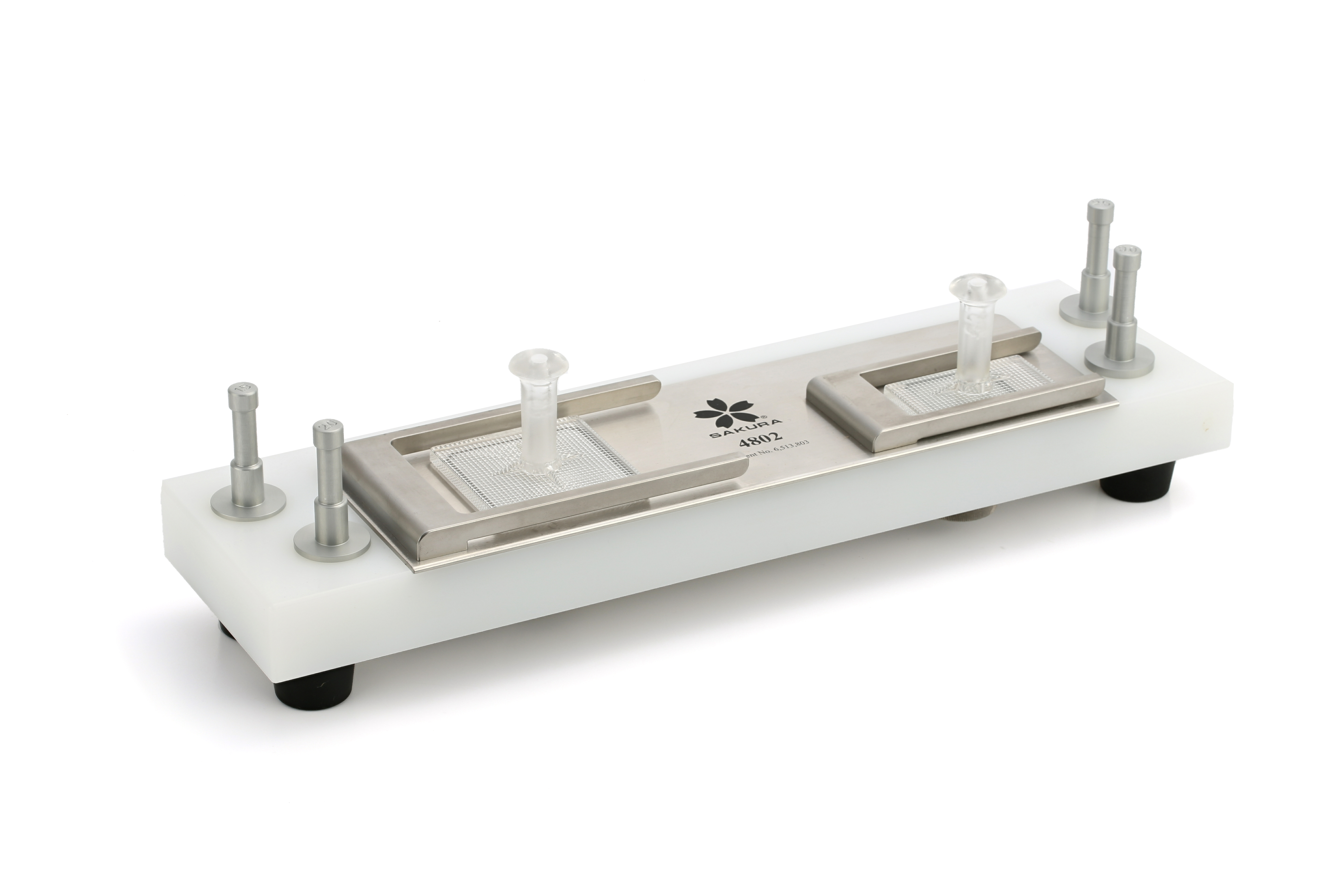

    Tissue-Tek® Accu-Edge® Grossing Wells
